T4811000 -

TEMPERATURE CONTROL UNIT, W/DUAL RELAY OUTPUT

Red Lion Controls T4811000
聲明：圖片僅供參考，請以實物為準！
制造商產品編號：
T4811000
倉庫庫存編號：
70030970
技術數據表：
View T4811000 Datasheet Datasheet
訂購熱線： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于產品數據庫龐大，部分產品信息可能未能及時更新，下單前請與銷售人員確認好實時在庫數量，謝謝合作！
  美国1号仓库    仓库直销，订单金额100元起订，满300元含运，满500元含税运，有单就有优惠，量大更优惠，支持原厂订货
型号 制造商 描述 实时库存 起订量 实时单价
(含税)		 货期
(工作日)		 操作
T4811000
库存编号:RLC497-ND		 Red Lion Controls CONTROL TEMP RELAY OUT 85-250V0
起订		6-10天询价 询价
查看资料

T4811000產品概述

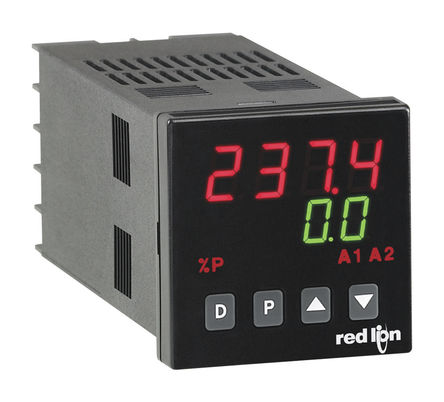

The Red Lion model T48 Controller accepts signals from a variety of temperature sensors (thermocouple or RTD), precisely displays the process temperature, and can provide an accurate output control signal (time proportional or DC Analog Output) to maintain a process at a desired temperature. Dual 4-digit displays allow viewing of the temperature and setpoint simultaneously while front panel indicators inform the operator of the controller and output status. On many models, the main control output and the alarm options are field replaceable. The controller's comprehensive yet simple programming allows it to meet a wide variety of application requirements. Features:
  • PID control with reduced overshoot
  • On demand auto-tuning of PID control settings
  • NEMA 4X/IP65 Bezel
  • Dual LED displays for simultaneous indication of temperature and setpoint
  • Status indicators for outputs and control modes
  • Accepts 10 types of sensor inputs (Thermocouple or RTD)
  • Manual/automatic control modes
  • Setpoint ramping for progress startup
  • Programmable user input (Digital) for added flexibility
  • Sensor error compensation (Offset) and break detection
  • Heating and optional cooling outputs
  • Parameter security via programmable lockouts
  • Field replaceable output board (Relay or Logic/SSR drive)
  • Second setpoint setting
  • PC software available for controller configuration

    • T4811000產品信息

      Brand/Series  T48 Series
      Display Colors  Green, Red
      Display Type  Multi Line
      Enclosure Rating  IP65
      Input Type  RTD, Thermocouple
      Mounting Type  Panel Mount
      Number of Inputs  1
      Number of Outputs  2
      Output Type  Relay
      Power Rating  8 VA
      Primary Type  Controller
      Size  49.5 x 49.5 mm
      Special Features  EEPROM
      Supply Voltage  85-250 VAC
      Temperature, Ambient  0° to 50°C
      Temperature, Operating, Maximum  50°C
      Temperature, Operating, Minimum  0°C
      Temperature, Operating, Range  0 to 50°C
      Termination  Screw
      Type  Temperature
      Voltage Rating  120/240 VAC
